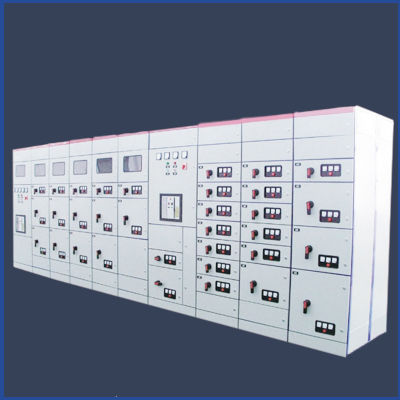

變頻器在許多電氣設備中是必不可少的組件，像配電柜，控制柜，一些電氣控制柜中，都有有變頻器的存在。

Frequency converters are essential components in many electrical equipment, such as distribution cabinets, control cabinets, and some electrical control cabinets.

接下來，跟著高低壓成套電氣設備廠家一起了解一下變頻器的控制電路的組成與相關特性：

Next, let's follow the manufacturers of high and low voltage complete electrical equipment to understand the composition and related characteristics of the control circuit of the frequency converter:

變頻器控制電路由這些電路組成：頻率、電壓的運算電路、主電路的電壓、電流檢測電路、電動機的速度檢測電路、將運算電路的控制信號進行放大的驅動電路，以及逆變器和電動機的保護電路。

The frequency converter control circuit consists of these circuits: frequency and voltage calculation circuit, voltage and current detection circuit of the main circuit, speed detection circuit of the motor, driving circuit that amplifies the control signal of the calculation circuit, and protection circuit of the inverter and motor.

變頻器驅動電路的HCPL-316J特性：

HCPL-316J characteristics of frequency converter drive circuit:

兼容CMOS/TYL電平；光隔離，故障狀態反饋；開關時間非常大500ns；“軟”IGBT關斷；欠飽和檢測及欠壓鎖定保護；過流保護功能；寬工作電壓范圍(15～30V)；用戶可配置自動復位、自動關閉。 DSP與該耦合器結合實現IGBT的驅動，使得IGBT VCE欠飽和檢測結構緊湊，低成本且易于實現，同時滿足了寬范圍的安全與調節需要。

Compatible with CMOS/TYL levels; Optical isolation and fault status feedback; The maximum switching time is 500ns; "Soft" IGBT shutdown; Undersaturation detection and undervoltage locking protection; Overcurrent protection function; Wide operating voltage range (15-30V); Users can configure automatic reset and automatic shutdown. The combination of DSP and this coupler realizes the driving of IGBT, making the IGBT VCE undersaturation detection structure compact, low-cost, and easy to implement, while meeting a wide range of safety and regulation needs.

多年來，我們一直致力于電力電氣配套設備生產，生產工藝先進，檢測手段完善，可以針對不同行業自動化控制需求提供不同的技術服務和解決方案。

For many years, we have been committed to the production of power and electrical supporting equipment, with advanced production processes and complete testing methods. We can provide different technical services and solutions for automation control needs in different industries.
